Monomaterial Solutions

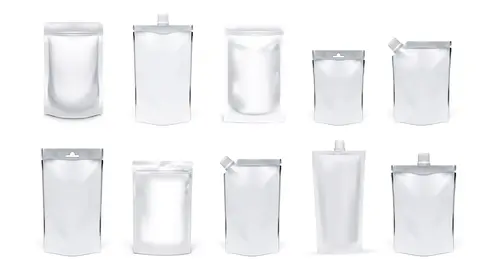

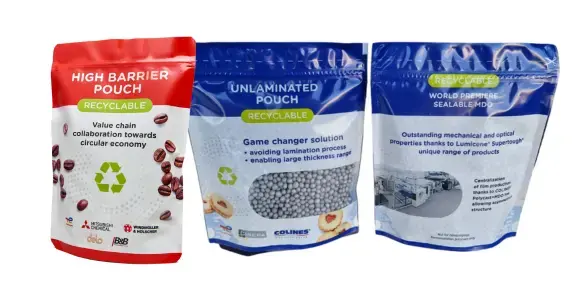

PE Stand-Up Pouch

standup pouch

Stand-Up Pouch is a fast-growing market: compared to traditional packaging, it can offer significant advantages in terms of production, shipping and warehousing costs while reducing CO2 emissions. However it is a challenging packaging format to ensure goods protection and meet demanding organoleptic requirements.

For non retort pouches, TotalEnergies offers a full range of metallocene gradesLumicene® M5510AP (high density grade) and Lumicene® Supertough® 22AST05 and Lumicene® Supertough 32AST05 exhibit excellent organoleptic properties, tailored sealing (temperature/force) and superior mechanical properties (including flex crack resistance, dart drop and tear resistance).

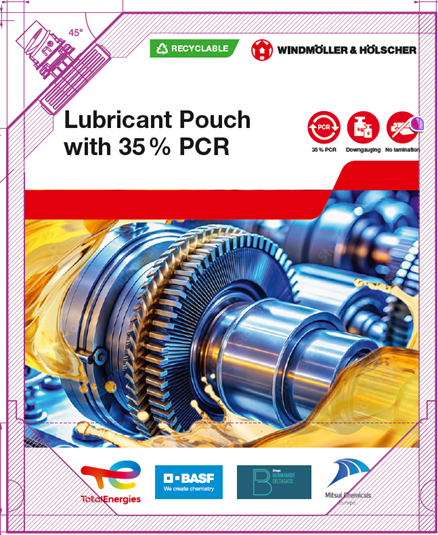

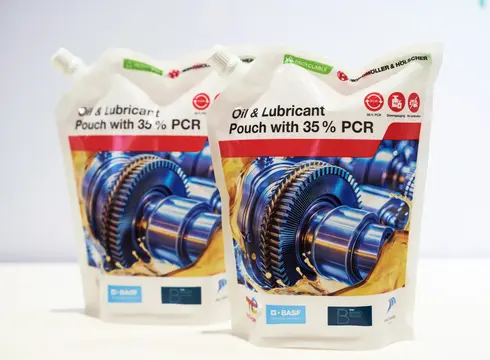

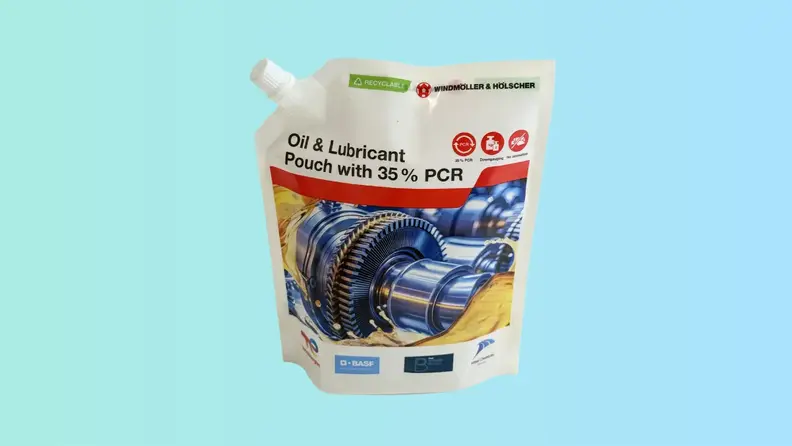

Oil and Lubricant Pouch Containing 35% Recycled Plastic

The developed pouch features a recyclable PE/PA multi-layer structure made of Polyethylene from TotalEnergies’ Lumicene® and Lumicene Supertough® ranges. In addition, it incorporates 35% recycled polymer, thanks to the use of TotalEnergies rPE 2206, a mechanically recycled post-consumer grade.

The pouch achieves a thickness of just 170 μm — representing an 83% reduction in material use compared to the standard 1-liter HDPE rigid container that has typically a thickness of 1000 μm.

MDO PE Blown and Cast Films

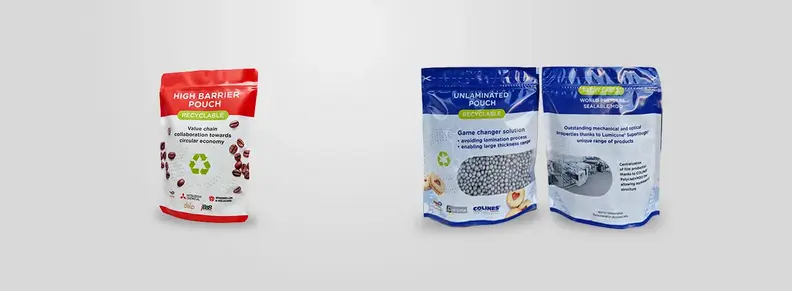

High Barrier Recyclable Stand-up Pouch

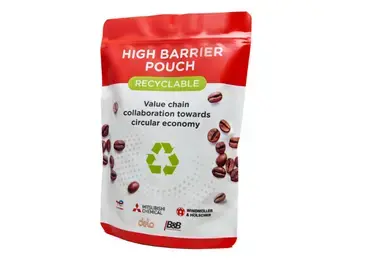

Blown film: Monomaterial High Barrier Pouch

The MDO-PE film recipe is composed of TotalEnergies Supertough®, such as Lumicene® Supertough® 32AST05, and unique Lumicene® high density PE, such as Lumicene® M5510AP. The objective is to replace multimaterial structures (e.g., metalized BoPP/PE or metallized BoPET/PE) with fully recyclable monomaterial structures suitable for food-grade applications, in line with brand owners’ commitments to 100% recyclable packaging by 2025.

Read the press release here

In 2019 TotalEnergies introduced for the first time a recyclable full PE pouch. This pouch was based on a  PE-MDO film based on Lumicene Supertough® mPE laminated with a blown film made with Lumicene®mPE. This resulted in outstanding sealing performances, crystal-clear print quality and  excellent rigidity for high-speed conversion and offered a replacement solution to non-recyclable  PET/PE film laminates.

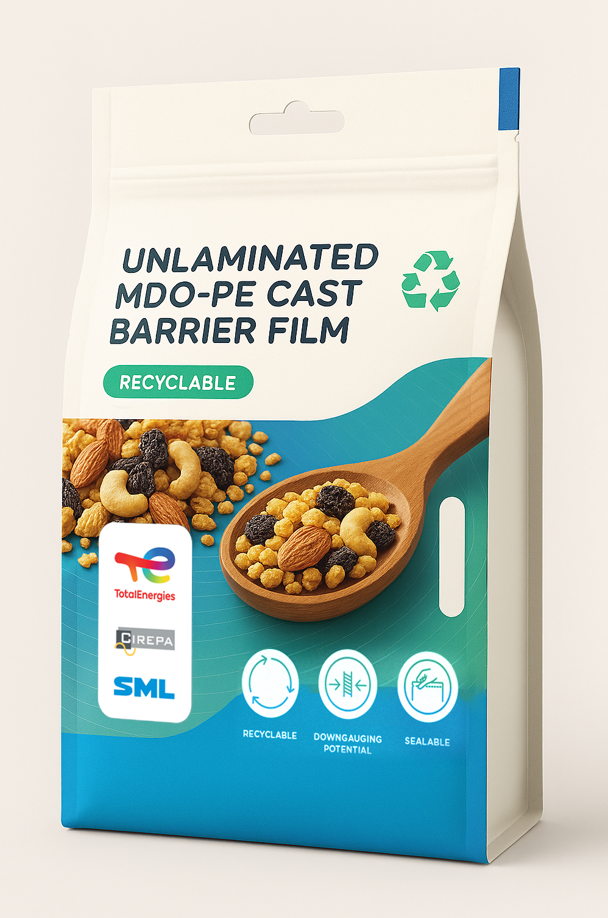

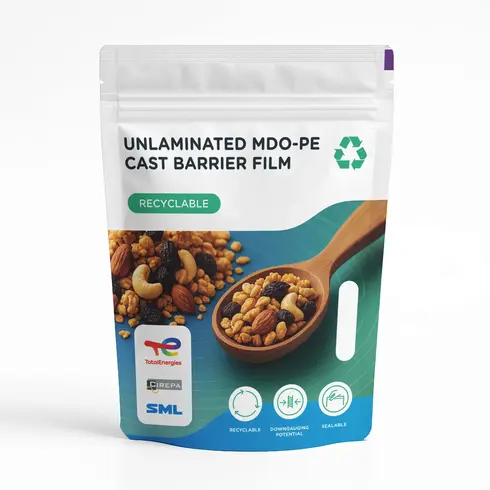

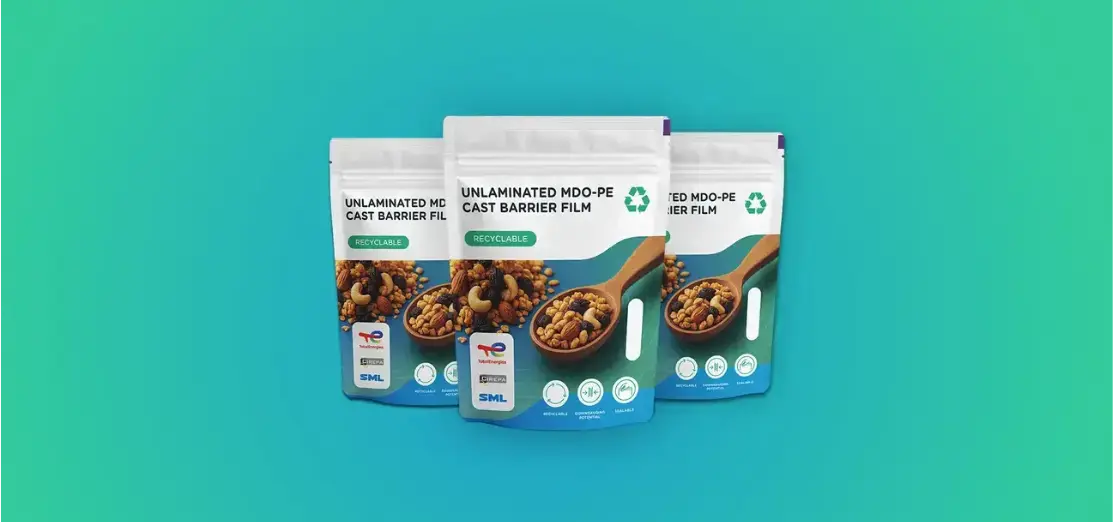

Unlaminated MDO-PE cast barrier film

Designed for re-sealable barrier stand-up pouch applications, combines polyethylene with a thin layer of ethylene-vinyl alcohol copolymer (EVOH) to deliver good oxygen barrier properties. It combines  excellent film flatness, with downgauging over 30% without compromising performance versus PE/PET structures. Designed for versatility, the 60μm film works with or without lamination, and when used alone, simplifies recycling.

Read the press release here

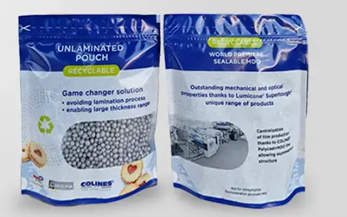

Cast Film: Unlaminated Pouch

TotalEnergies developed a full PE recyclable Unlaminated Stand-Up Pouch, allowing to decrease the packaging thickness. The MDO-PE film presents an asymmetrical structure, with low density in the sealing layer and high density in the stiff layer. This performance is possible thanks to the unique metallocene range of TotalEnergies Supertough® and Lumicene® high density PE, which offer a vast thickness range of solutions fitting customer’s needs. This film is made of Lumicene® M5510AP (high density grade) and Lumicene® Supertough® 16AST15, together with other state-of-the-art PE grades from our range.

Read the press release here

BOPE High Density

BOPE high density has been identified as PET replacement solution. Following extensive R&D efforts, TotalEnergies has launched a dedicated grade for BOPE High Density: HDPE XBO58 is the high-density polyethylene grade designed to produce biaxially oriented film on tenter frame technology. HDPE XBO58 offers high MD stiffness as well as impact resistance and slow puncture resistance.
